SQUARE AND RECTANGULAR SKYLIGHTS FOR ANY PROPERTY
When it comes to utilising the sun, enhancing the natural light or increasing ventilation in an area for homes and businesses, Redcliffe Skylights has the perfect range of solutions. There's something for every property, with skylights available to suit most domestic and commercial roofs. Square or rectangular skylights can be a great addition to a dull, dark room and can help boost your ventilation.
GET IN TOUCH TO FIND OUT MORE
SQUARE AND RECTANGULAR SKYLIGHT INFORMATION
- Robust design
- Weatherproof
- Low silhouette
- Natural lighting
- Energy saver
- Easy installation
- Generous vent areas
- 7-year warranty on workmanship
- Guaranteed ventilation and light
If you want a skylight that offers an integrated modern look to rib deck roofs, Redcliffe Skylights provides an effective solution. Low in profile, our skylights are a subtle fit that will help you ventilate a property and bring in natural light where needed.
- Skylight bases can be manufactured from 0.8mm Zincalume or Galvanised iron. Stainless steel, aluminium or copper skylights are available upon request.
- Skylight bases can be painted or powder-coated to suit most Colorbond roof colours.
- Skylights are either ventilated (passive or mechanically) or non-ventilated.
- Skylight domes are either opal or clear 3mm high-impact acrylic. 4.5mm high-impact acrylic, 3mm polycarbonate in opal, clear or grey tint available upon request.
- Flexible duct for square and rectangular skylights available for 400x400, 500x500, 500x800, 500x1100, 600x600, 600x900, 600x1200, 800x800 sizes up to 6m lengths only.
- Ceiling trim/surround (t-rail) and diffuser can be cut to size and is not restricted to the above measures.
- Redcliffe Skylights can supply and freight products directly to you, depending on location.
SKYLIGHTS TO SUIT CORRUGATED ROOFS
CORRUGATED SKYLIGHTS (CS)
The CS model skylight is fully flashed and preset in a corrugated sheet for easy installation into corrugated roofs. The skylight incorporates a soaker tray with the corrugations capped and sealed around the skylight.
CORRALITE SKYLIGHT (CL)
The CL model skylight is fully pan-flashed for ease of installation on corrugated roofs. The skylight incorporates a built-in soaker tray or under ridge-cap style flashing.
SKYLIGHTS FOR RIB DECK ROOFS
METAL PAN SKYLIGHT (MP) / FLAT TRAY SKYLIGHT (FT)
This model comes complete with a built-in soaker tray or under ridge-cap style flashing, which makes for easy installation in most metal rib deck roofs. They can also be made as a flat tray with no turn-downs (FT) to allow maximum installation flexibility.
HOB STYLE SKYLIGHT (SK)
We can also offer the SK model skylight, which is manufactured to fit onto a concrete, metal or timber hob (upstand). This allows existing plumbers flashing to be well protected by the over-flashing of the skylight base. Featuring a low silhouette, this compact unit is available in various square, round and rectangular sizes. Strongly constructed, it is thoroughly weatherproofed with the option of a generous ventilation area sheltered underneath the dome.
BEAUTIFUL SKYLIGHTS FOR TILED ROOVES (ETS)

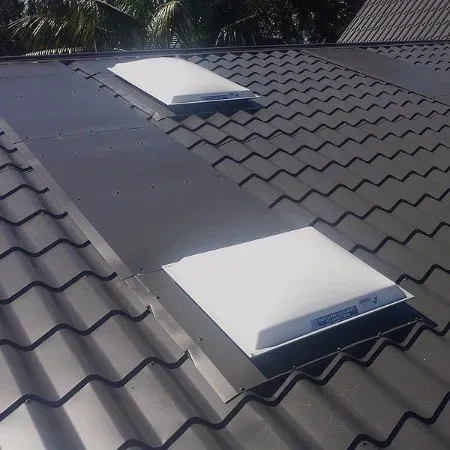

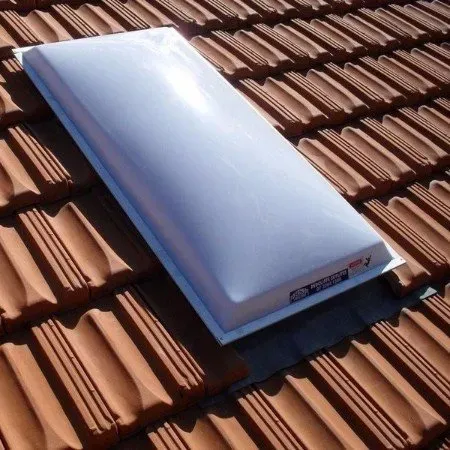

The ETS model skylight incorporates a fully flashed metal base, soaker tray with tie-down straps and perform flashing to mould with your tile profile (soft aluminium with reinforced mesh). Fully waterproofed and suitable for concrete tile roofs, units are designed for standard spacing of rafters or trusses. For metal tiles, flashing can be constructed as the ETS model but can also be altered to the specifications of the metal tile profile.

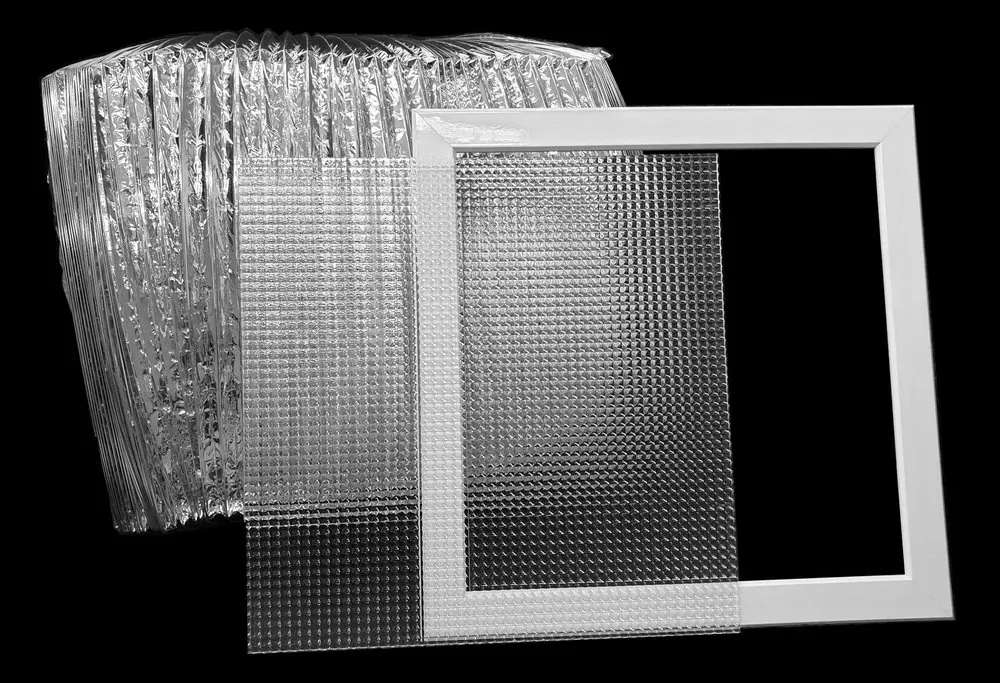

SQUARE SKYLIGHT FLEXIBLE SHAFT KIT
Redcliffe Skylights offer flush ceiling assemblies to suit square and rectangular skylights . The ceiling assembly comes standard with a 2m flexible shaft kit. If needed, the flexible duct can come in up to 6m lengths. Available in the following dimensions:
- 400x400
- 500x500
- 500x800
- 500x1100
- 600x600
- 600x900
- 600x1200
- 800x800
The square skylights come with two different T-rail trim types; the white powder coated Aluminium T-rail or, for a cheaper option, the white plastic T-rail. All standard skylights will come with the Aluminium option unless requested otherwise.
The standard ceiling assembly offered with all circular series skylights is the Y15 Prismatic (as pictured), but we also provide Y12 Prismatic, 3mm Lite Opal acrylic or Seadrift.
