CIRCULAR SERIES SKYLIGHTS
Redcliffe Skylights Circular Series are outstanding for those smaller spaces to help with ventilation and natural lighting and are a cost-effective way to meet lighting or ventilation requirements in your bathroom or toilet. There's something for every property with skylights available to suit domestic and commercial roofs.
WE’RE ONLY A PHONE CALL AWAY! CALL 1800 017 226 AND LET US KNOW HOW WE CAN HELP.
CIRCULAR SKYLIGHT INFORMATION
- Robust design
- Weatherproof
- Low silhouette
- Natural lighting
- Energy saver
- Easy installation
- Generous vent areas
- 7-year warranty on workmanship
- Guaranteed ventilation and light
Redcliffe Skylights offer 4 different models in the circular series. All of our circular skylights from series 1 to 4 have only one roof penetration. This saves on installation costs and delivers a far smoother roof line. Similar products on the market have multiple roof penetrations, but Redcliffe Skylights circular skylights have been developed with the utmost care and precision. The Circular Series 1, 2, and 3 are available in 300, 400 and 500 diameters. The Circular Series 4 are available in 400 and 500 diameters.
- Circular series skylights come with clear 3mm High Impact Acrylic domes, but can be supplied with opal upon request.
- All circular series skylights can be manufactured to suit your roof profile similar to the square and rectangular models.
- Skylights can be manufactured from 0.8mm Zincalume or Galvanised iron. Stainless steel, aluminium or copper skylights available at request.
- Circular series skylights can also be made with a glass top to comply with BAL<29 requirements.
- Skylight bases can be painted or powder-coated to suit most Colorbond roof colours.
- Redcliffe Skylights can supply and freight products directly to you, depending on location.
CONTACT US FOR MORE INFORMATION.
CIRCULAR SERIES PRODUCTS
CIRCULAR SERIES 1
Available in sizes 300dia, 400dia & 500dia, this unit is a non-ventilated model where only light is required. The ideal application for many rooms such as living areas, hallways, bathrooms, garages etc.

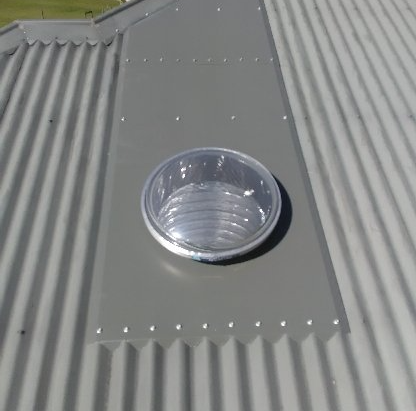

EXAMPLE OF SERIES 1 (RMP)
CIRCULAR SERIES 2
Available in sizes 300dia, 400dia & 500dia, this unit is a mechanically ventilated model where light and ventilation is required. This model is the ideal application for rooms that may not have a window or require mechanical ventilation to meet BCA standards.
This is designed for use in bathrooms, en suites, laundries, or even kitchens etc. An electrician is required to connect the fan to a power output.

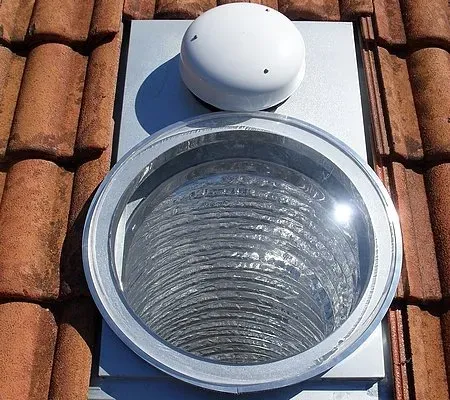

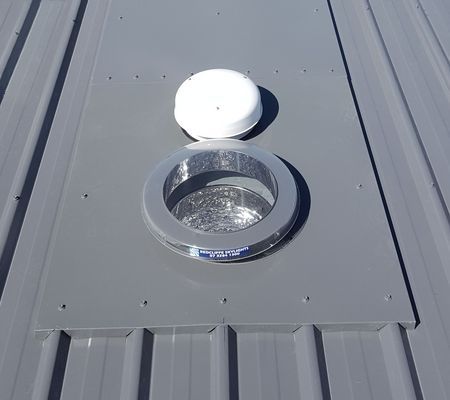

EXAMPLE OF SERIES 2 (RETS)
CIRCULAR SERIES 3
Available in sizes 300dia, 400dia & 500dia, this unit is a mechanically ventilated model where light is required for 1 room and ventilation needed for the 2nd adjoining room. This model is the ideal application for adjoining rooms that one may only need ventilation and one needing more natural light.
This is designed for use in adjoining bathrooms, toilets, ensuites and laundries. An electrician is required to connect the fan to a power output.

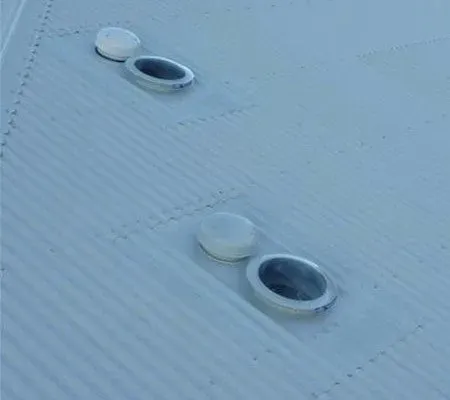

EXAMPLE OF SERIES 3 (RCS)
CIRCULAR SERIES 4
Available in only 400dia & 500dia sizes, this unit is a mechanically ventilated model where light and ventilation is required. This model is similar to the series 2 but as the fan is in-line it may obstruct the light. This model is the ideal application for rooms that may not have a window or require mechanical ventilation to meet BCA standards.
This is designed for use in bathrooms, ensuites, laundries, or even kitchens etc. An electrician is required to connect the fan to a power output.

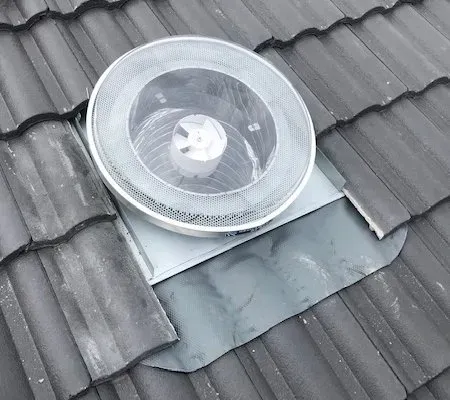

EXAMPLE OF SERIES 4 (RETS)
CIRCULAR SERIES FLEXIBLE SHAFT KIT

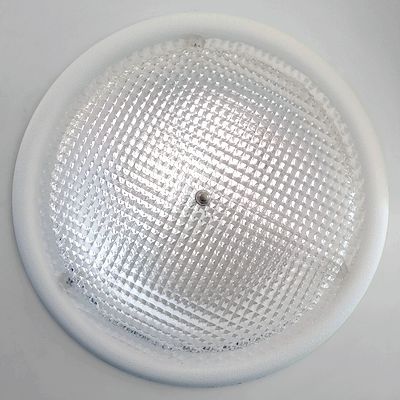

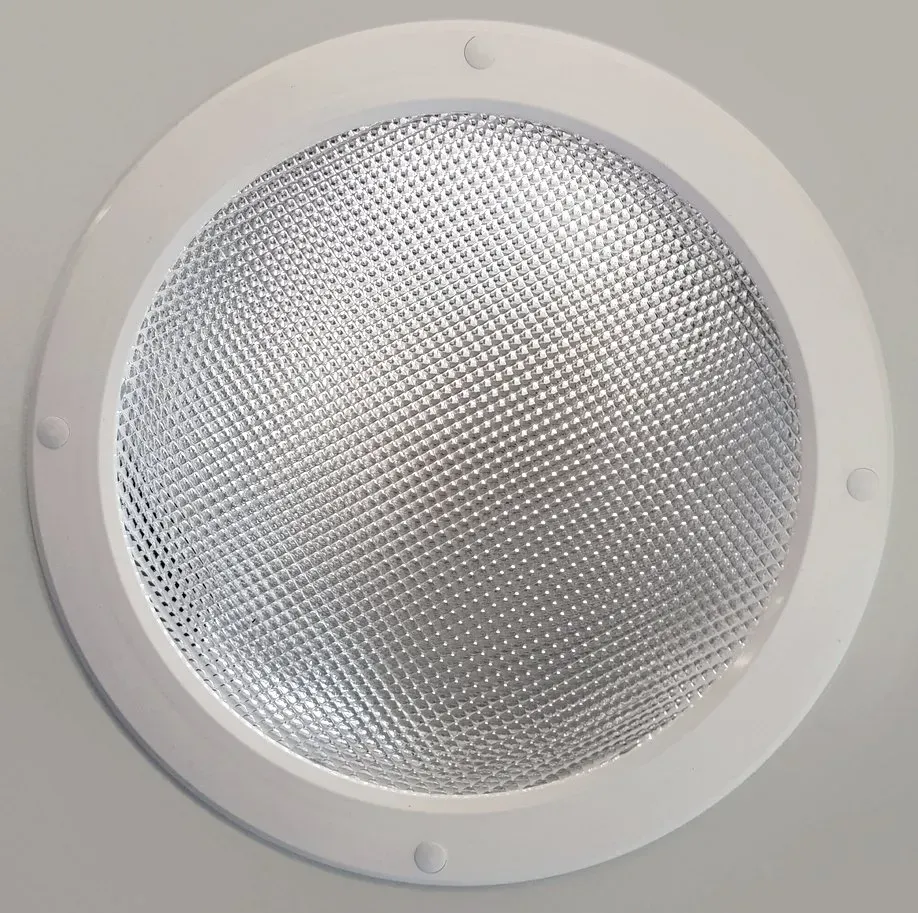

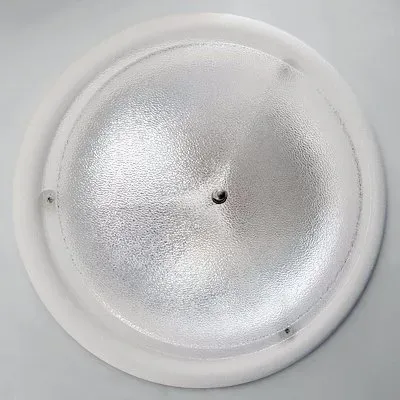

Available in 300dia, 400dia & 500dia sizes, Redcliffe Skylights offer domed ceiling assemblies. The ceiling assembly comes standard with a white ABS moulded trim and a 2m flexible shaft kit. If needed, flexible duct can come in up to 6m lengths. Included in the kit are spacers that are installed between the trim and diffuser to allow for airflow and ventilation. There is an option for a flush ceiling trim but this does not allow for ventilation. The standard ceiling assembly offered with all circular series skylights is the Y15 Prismatic (as pictured below), but we also offer Y12 Prismatic, 3mm Lite Opal acrylic or Seadrift. You can see examples of these below.
